Payment & Shipping Terms:
|CNC Lathe Usage:||Automotive Wheel Turning Lathe Machine||Max.Diameter Of Cylinder,shaft, Pipe:||600 Mm|
|Max.Length Of Cylinder, Shaft:||500 Mm||CNC Control System:||SIEMENS, FANUC, GSK,Manual Type According To Customer Request|
|Certificate:||BV, CE, SGS, ISO9001||Optional Machine Accessories:||Chuck, Roll Rest, Etc|
cnc horizontal lathe machine,
horizontal turret lathe

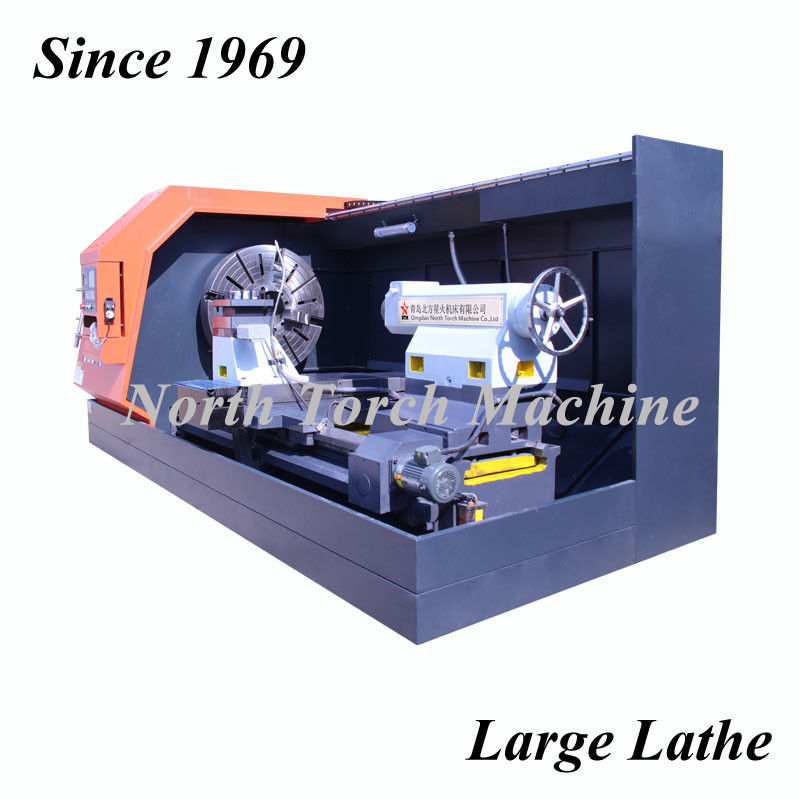

Semi automatic horizontal lathe machine for turning shipyard propeller
We are China Professional Manufacture for Horizontal Lathe Machine, Heavy duty lathe, Roll turning Lathe, Pipe Threading Lathe, CNC Lathe, Conventional Lathe, Large CNC Lathe with drilling milling functions, CNC Grinding Machine and Special designed lathe, etc
We have our own foundry with professional inspection devices, such as Hardening Furnace, straightness tester, stifness detection system, ultrasonic fault detctor, etc. We can contorl the castings quality very well to guarantee a high precision, rigidity and stability of lathe machine.
The lathe is also can be installed the tailstock to machining long shaft, cylinder, propeller, breaking hammer etc. Without tailstock, it is a kind of facing in lathe and can be used for turning flange, tyre mold, Aluminum Mold, steel part, and other disc part.
1. Application of Horizontal CNC Lathe: This kind of CNC Lathe is Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
2. ADVANTAGES & FEATURES OF Our CNC LATHE:
1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.
3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
5. High torque capacity of headstock of lathe machine
6. Zero backlash with ball screw.
7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
8.Tailstock is electrical control with pressure display, which obtained our national patent.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of CNC Lathe
|CK61 series horizontal CNC Lathe|
|Guide rail Type||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails||Rectangle 2 Guide Rails|
|Swing diameter over machine bed||mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500||φ3000|
|Swing diameter over cutting tool carriage||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500|
|Guide rail width of machine bed||mm||600mm||755mm||1000mm||1000mm||1100mm||1100mm|
|4 jaws single action Chuck diameter||mm||φ400mm||φ800mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm|
|Max.Length of work-piece||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X Axis Stroke||mm||400mm||600mm`||800mm||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||1000mm||2000mm||3000mm||4000mm||5000mm||6000mm|
|X axis rapid speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min||2000mm/min|
|Z axis rapid speed||mm/min||3000mm/min||3000mm/min||3000mm/min||2500mm/min||2500mm/min||2500mm/min|
|F Cutting tool blade size||mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Tailstock spinlde diameter||mm||φ150mm||φ180mm||φ240mm||φ240mm||φ280mm||φ280mm|
|Tailstock sleeve stroke||mm||300mm||300mm||300mm||300mm||300mm||300mm|
|Tailstock moving method||Electrical||Electrical||Electrical||Electrical||Electrical||Electrical|
|Tailstock Tip||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 120 1:7||Metric 160 1:7|
|Lubrication Motor Power||KW||0.37KW||0.55KW||0.56KW||0.57KW||0.58KW||0.59KW|
Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.
For more details, please feel free to contact us.
Thank you for attention.
Tag: CNC Lathe, Horizontal Lathe, Lathe Machine with high speed, PLC Control Lathe Machine
