Product Details:
Payment & Shipping Terms:
|
| Machine Type: | CNC Machine Tool | Optional Machine Accessories: | Chuck, Roll Rest, Etc |
|---|---|---|---|
| Max.Diameter Of Cylinder,shaft, Pipe: | 1600mm | Max.Length Of Cylinder, Shaft: | 4000 Mm |
| CNC Control System: | SIEMENS, FANUC, GSK,Manual Type According To Customer Request | Certificate: | BV, CE, SGS, ISO9001 |
| High Light: | horizontal turning lathe,lathe machine tool |
||
Professional Parallel Flat Bed CNC Machine Tool for turning Long Shaft, Pipe

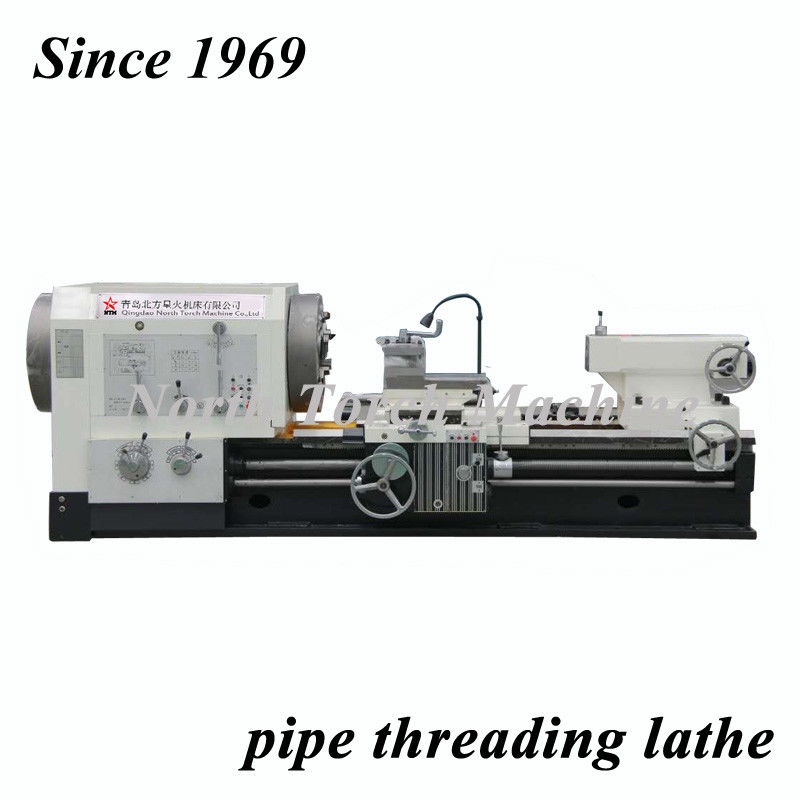

We also manufacture conventional lathe, Lathe machine with PLC system , Lathe with DRO system, Pipe threading lathe with 2 chucks according to customer different requirements.
The lathe is also can be installed the tailstock to machining long shaft, cylinder, propeller, breaking hammer etc. Without tailstock, it is a kind of facing in lathe and can be used for turning flange, tyre mold, Aluminum Mold, steel part, and other disc part.
We are specialized in manufacturing customized lathe machine, roll turning lathe, CNC lathe, Heavy Duty Horizontal Lathe, CNC Grinding Machine, CNC Milling Turning Lathe, CNC Drilling Lathe, Flange turning lathe, Floor Type Lathe, etc
Our Lathe machine logo and brand is NTM. We also design and manufacture Customized lathe with customer logo.
This is our European Customer's lathe manufactured by our company with customer's logo, brand and local language.
Warmly welcome you to visit our company for business cooperation.
2. ADVANTAGES & FEATURES OF Our CNC LATHE:
We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
High torque capacity of headstock of lathe machine
Zero backlash with ball screw.
Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
Tailstock is electrical control with pressure display, which obtained our national patent.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of CNC Lathe
| CK61 series horizontal CNC Lathe | |||||||
| Name | Unit | CK6180 | CK61125 | CK61160 | CK61200 | CK61250 | CK61300 |
| Guide rail Type | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | |
| Swing diameter over machine bed | mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500 | φ3000 |
| Swing diameter over cutting tool carriage | mm | φ400mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500 |
| Guide rail width of machine bed | mm | 600mm | 755mm | 1000mm | 1000mm | 1100mm | 1100mm |
| 4 jaws single action Chuck diameter | mm | φ400mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
| Max.Length of work-piece | mm | 1000mm | 2000mm | 3000mm | 4000mm | 5000mm | 6000mm |
| Work-piece Weight | T | 2T | 5T | 10T | 12T | 15T | 15T |
| Spindle Diameter | mm | φ190mm | φ190mm | φ220mm | φ220mm | φ260mm | φ260mm |
| Spindle Speed | r/min | 10-300r/min | 5-134r/min | 5-106r/min | 5-106r/min | 3-87r/min | 3-87r/min |
| X Axis Stroke | mm | 400mm | 600mm` | 800mm | 1000mm | 1250mm | 1500mm |
| Z Axis Stroke | mm | 1000mm | 2000mm | 3000mm | 4000mm | 5000mm | 6000mm |
| X axis rapid speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
| Z axis rapid speed | mm/min | 3000mm/min | 3000mm/min | 3000mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
| F Cutting tool blade size | mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
| Tailstock spinlde diameter | mm | φ150mm | φ180mm | φ240mm | φ240mm | φ280mm | φ280mm |
| Tailstock sleeve stroke | mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Tailstock moving method | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | |
| Tailstock Tip | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 160 1:7 | |
| Total Power | KW | 11KW | 15KW | 18.5KW | 22KW | 30KW | 37KW |
| Lubrication Motor Power | KW | 0.37KW | 0.55KW | 0.56KW | 0.57KW | 0.58KW | 0.59KW |
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughtness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.
For more details, please feel free to contact us.
Thank you for attention.
