|Application Of Horizontal Lathe:||Turning Drilling Cylinders, Shaft, Propeller, Pipe, Etc||Max.Diameter Of Cylinder,shaft, Pipe:||630 Mm 1000 Mm 1250 Mm 1600 Mm 2000 Mm|
|Max.Length Of Cylinder, Shaft:||2000 Mm 3000 Mm 4000 Mm 5000 Mm 8000 Mm||CNC Control System:||SIEMENS, FANUC, GSK, According To Customer Request|
|Voltage:||380V, 440V, 415V, 220V, Etc||Weight Of Machining Part:||6T 15T 32T 45T 55T|
|After-sale Service Of Roll Lathe:||Engineers Are Available For Oversea Machine Installation And Commissioning||Horizontal Lathe Accessories:||Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc|
computer lathe machine,
horizontal turret lathe

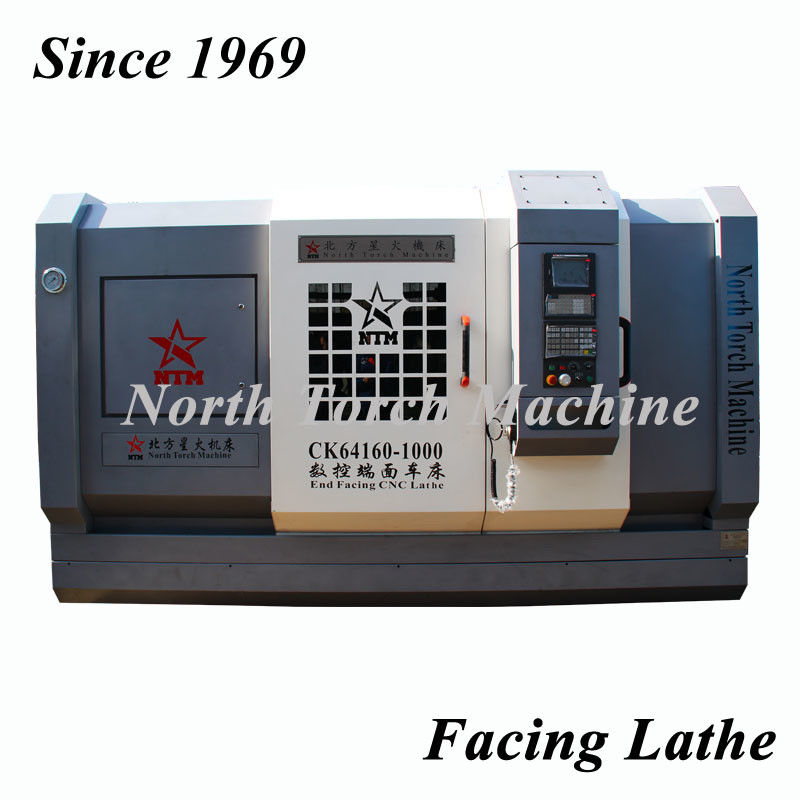

Universal Horizontal Lathe Machine for turning flange, pump body
1. We have our own professional engineering and technical team to provide customized lathe machine design and manufacture with more than 50 years experience.
We can specially designed and made special cnc lathe, vertical lathe, lathe machines, roll turning lathe, flange lathe, pipe threading lathe, cnc grinding lathe, cnc milling machine and other horizontal lathe machine. We have the ability to provide unique design which helps the user save cost and highly improve the machining efficiency. This made my company obtained a lot of lathe machine orders evey year from the national and oversea markets.
This Product Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
2. OUR ADVANTAGES & FEATURES about Horizontal LATHE Machine:
1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.
3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
5. High torque capacity of headstock of lathe machine
6. Zero backlash with ball screw.
7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
8.Tailstock is electrical control with pressure display, which obtained our national patent.
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of Horizontal lathe Machine
|Specifications of Horizontal Lathe Machine|
|Swing Diameter over Machine Bed||mm||φ1250mm||φ1600mm||φ2000mm||φ2500mm||φ3000|
|Chuck-jaw seat length||mm||Embedded||Embedded||500mm||500mm||500mm|
|Spindle Speed||r/min||10-200 r/min||4-160 r/min||4-160 r/min||3-106 r/min||3-106 r/min|
|X Axis Stroke||mm||625mm||800mm`||1000mm||1250mm||1500mm|
|Z Axis Stroke||mm||500mm||750mm||1000mm||1000mm||1000mm|
|X Axis Rapid Feed Speed||mm/min||2500mm/min||2500mm/min||2500mm/min||2000mm/min||2000mm/min|
|Z Axis Rapid Feed Speed||mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min||2000mm/min|
|Cutting Tool Carriage Size||240*240||280*280||300*300||300*300||300*300|
|Cutting Tool Shank Size||mm||32*32mm||40*40mm||40*40mm||40*40mm||40*40mm|
|Feed Control||Servo Motor||Servo Motor||Servo Motor||Servo Motor||Servo Motor|
|Main Motor Power||KW||15KW||18.5KW||18.5KW||22KW||37KW|
|Feed Motor of Z Axis||KW||2.3KW||2.3KW||2.3KW||2.3KW||2.3KW|
|Feed Motor of X Axis||KW||2.3KW||5.5KW||5.5KW||5.5KW||5.5KW|
|Lubrication Motor Power||KW||0.37KW||0.37KW||0.37KW||0.55KW||0.55KW|
Remarks: The above technical parameters of Horizontal turning lathe is the standard specifications, we are also specialized in manufacutring customized lathe.
Thank you for attention.
Tag: Horizontal Lathe, lathe machine, CNC Lathe. Heavy Duty Lathe
