Product Details:
Payment & Shipping Terms:
|
Application Of Pipe Threading Lathe: | Turning Drilling Cylinders, Shaft, Propeller, Pipe, Etc | Spindle Bore: | 100 Mm 190 Mm 220 Mm 250 Mm 300 Mm 380 Mm 360 Mm 500 Mm |
---|---|---|---|
Max.Length Of Cylinder, Shaft: | 2000 Mm 3000 Mm 4000 Mm 5000 Mm 8000 Mm | CNC Control System: | SIEMENS, FANUC, GSK, According To Customer Request |
Voltage: | 380V, 440V, 415V, 220V, Etc | Weight Of Machining Part: | 6T 15T 32T 45T 55T |
After-sale Service Of Roll Lathe: | Engineers Are Available For Oversea Machine Installation And Commissioning | Horizontal Lathe Accessories: | Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc |
High Light: | cnc turning machine,horizontal turning lathe |

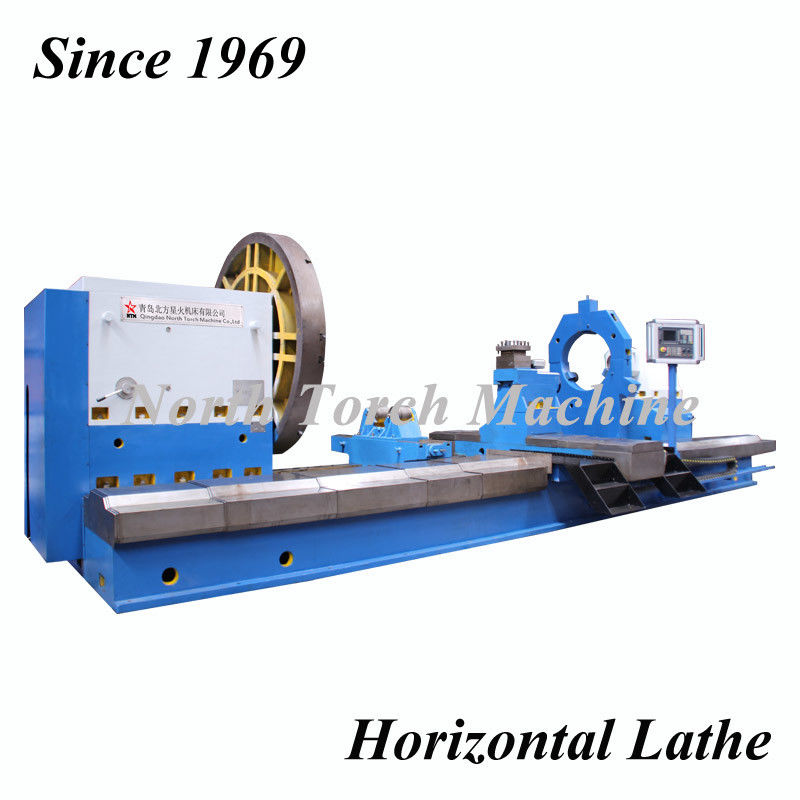

China Professional Excellent CNC Lathe CNC Machine Tool
1. Application of CNC Lathe Machine Tool: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
We also have professional machining equipments such as, Gantry CNC Milling Machine, Gantry CNC Grinding Machine, Large CNC Boring Machine, etc. We have 12 meter long gantry grinding machine to finish precision grinding for machine guide rails. All of our gears are ground by professional equipment to ensure its high precision.
We have our own after-sale service team to provide professional service to customers. Our engineers are also available for oversea market service like machine installation, commissioning, maintenance and training at customer's factory.
For the machine easy-damaged parts, we can provide immediately to prevent customer's halt production . For each lathe machine, we have one complete 3D & 2D drawings in dgw version.
2. OUR ADVANTAGES & FEATURES about Pipe Threading LATHE, Conventional pipe threading lathe:
More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.
We have our own FOUNDRY, which can control and guarantee the castings quality very well.
4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine
We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
High torque capacity of headstock of lathe machine
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of Horizontal Pipe lathe Machine
CK61 series CNC Lathe Machine Tool | |||||||
Name | Unit | CK6180 | CK61125 | CK61160 | CK61200 | CK61250 | CK61300 |
Guide rail Type | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | Rectangle 2 Guide Rails | |
Swing diameter over machine bed | mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500 | φ3000 |
Swing diameter over cutting tool carriage | mm | φ400mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500 |
Guide rail width of machine bed | mm | 600mm | 755mm | 1000mm | 1000mm | 1100mm | 1100mm |
4 jaws single action Chuck diameter | mm | φ400mm | φ800mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
Max.Length of work-piece | mm | 1000mm | 2000mm | 3000mm | 4000mm | 5000mm | 6000mm |
Work-piece Weight | T | 2T | 5T | 10T | 12T | 15T | 15T |
Spindle Bore Diameter | mm | φ190mm | φ190mm | φ220mm | φ220mm | φ250-300 mm | φ280-380 mm |
Spindle Speed | r/min | 10-300r/min | 5-134r/min | 5-106r/min | 5-106r/min | 3-87r/min | 3-87r/min |
X Axis Stroke | mm | 400mm | 600mm` | 800mm | 1000mm | 1250mm | 1500mm |
Z Axis Stroke | mm | 1000mm | 2000mm | 3000mm | 4000mm | 5000mm | 6000mm |
X axis rapid speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
Z axis rapid speed | mm/min | 3000mm/min | 3000mm/min | 3000mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
F Cutting tool blade size | mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
Tailstock spinlde diameter | mm | φ150mm | φ180mm | φ240mm | φ240mm | φ280mm | φ280mm |
Tailstock sleeve stroke | mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
Tailstock moving method | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | |
Tailstock Tip | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 160 1:7 | |
Total Power | KW | 11KW | 15KW | 18.5KW | 22KW | 30KW | 37KW |
Lubrication Motor Power | KW | 0.37KW | 0.55KW | 0.56KW | 0.57KW | 0.58KW | 0.59KW |
Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
Roughtness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.
4. After-sale Service
1. Engineers are available for Pipe Threading lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of Pipe Turning Threading Lathe,Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.
For more details, please feel free to contact us.
Thank you for attention.
