|Application Of Pipe Threading Lathe:||Turning Drilling Cylinders, Shaft, Propeller, Pipe, Etc||CNC Control System:||SIEMENS, FANUC, GSK, According To Customer Request|
|Voltage:||380V, 440V, 415V, 220V, Etc||Weight Of Machining Part:||6T 15T 32T 45T 55T|
|After-sale Service Of Roll Lathe:||Engineers Are Available For Oversea Machine Installation And Commissioning||Horizontal Lathe Accessories:||Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc|
cnc vertical turret lathe,
vtl lathe machine

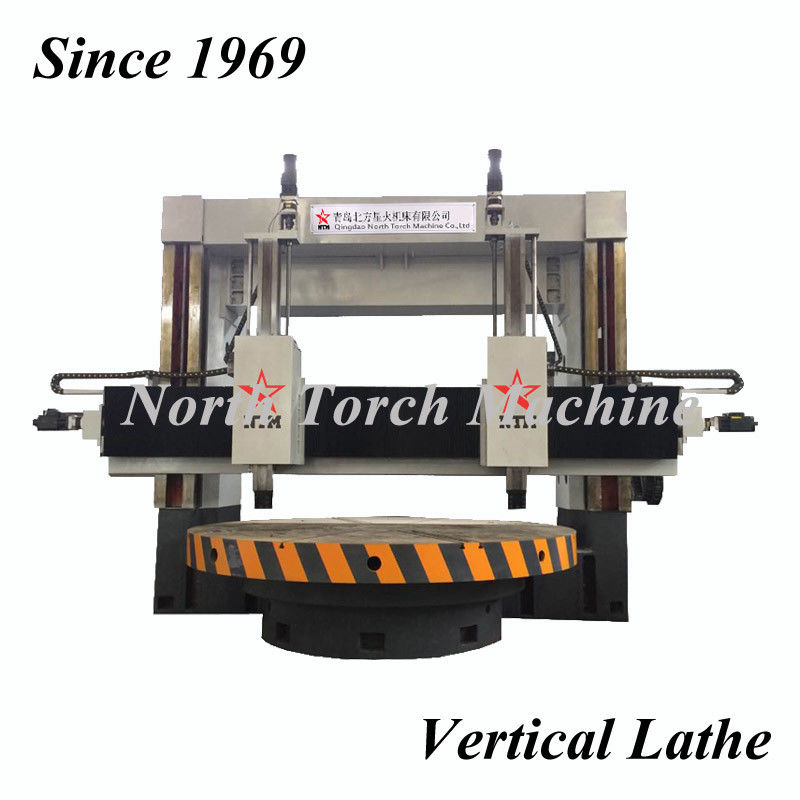

Specially designed High Speed CNC Vertical Lathe For Turning Pump Parts
1. Application of Vertical Lathe: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.
2. OUR ADVANTAGES & FEATURES about CNC Vertcial LATHE , Conventional Vertical Lathe:
1. More than 50 years experience in designing and manufacturing customized Vertcial Lathe, CNC Vertical Lathe, Pipe Turning Lathe, Pipe Threading CNC Lathe, Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, Conventional vertical lathe , Conventional Lathe and other machine tools.
2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.
3. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.
4. High torque capacity of worktable of lathe machine
5. Zero backlash with ball screw.
6. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system
Exported Countries :
Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc
3. Technical Parameters of Big Vertical Lathe
|Maximum diameter of workpiece||3200 mm|
|Maximum height of work-piece||2000 mm|
|Maximum weight of workpiece||15T|
|Work-Table Diameter||2800 mm|
|Table steps of speeds||stepless|
|Range of speeds of rotation||2 ~ 63r/min|
|Maximum torque of table||63 Kn/ m|
|Maximum cutting force of right Tool carrier||35 kN|
|Horizontal stroke of the right Tool carrier stroke||1600 mm|
|Vertical stroke (Ram)||1250 mm|
|Maximum cutting force of left blade carrier||30 kN|
|Fast Moving Speed of X,Y Axis||3000 mm/min|
|Power of Main Motor||55 KW|
|Overall Size of Machine||6800mm*4900mm*5100 mm|
Remarks: The above technical parameters of Vertical Lathe Machine is the standard specifications, we are also specialized in manufacturing customized lathe.
4. After-sale Service
1. Engineers are available for Vertical lathe machine installation , commissioning and training at the user factory.
2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.
3. The quality warranty of CNC Vertical Lathe,Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.
For more details, please feel free to contact us.
Thank you for attention.
