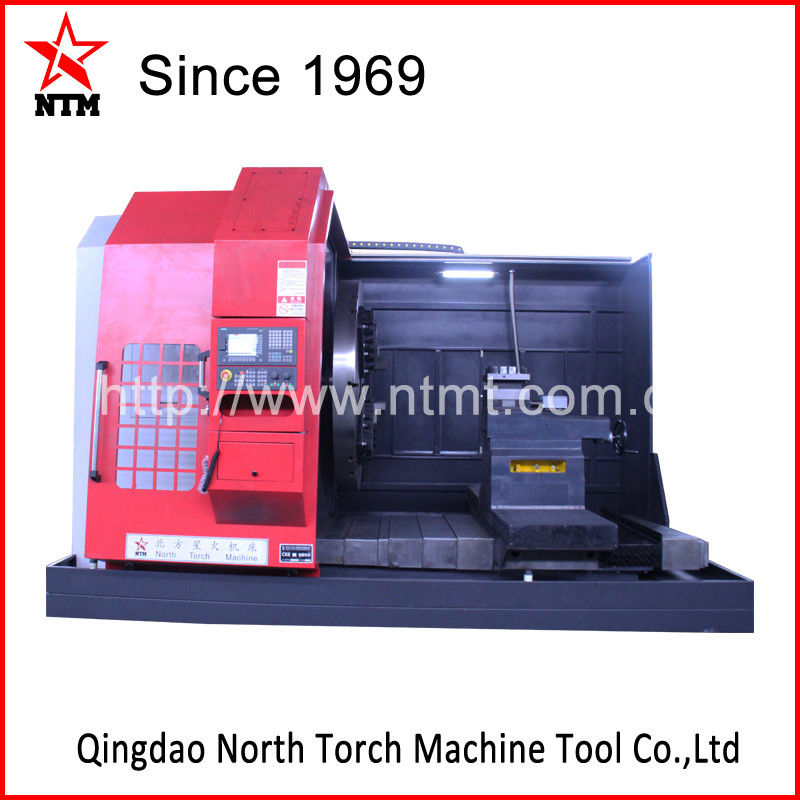

500mm Workpiece Large Span 4 Vertical Turret Facing Lathe

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

500mm Workpiece Large Span 4 Vertical Turret Facing Lathe

500mm Workpiece Large Span 4 Vertical Turret Facing Lathe
500mm Workpiece Large Span 4 Vertical Turret Facing Lathe

Large Image :  500mm Workpiece Large Span 4 Vertical Turret Facing Lathe

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized Horizontal Lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CK64250

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Vaccum bag and wooden box package
Delivery Time: 2 months
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per one year
Detailed Product Description
Max.swing Diameter Over Lathe Machine Bed: 2500 Mm Max.length Of Work-piece: 500 Mm--1000 Mm
Turret Of Lathe Machine: 4 Positions Vertical Autoration Turret Metal Cover For Lathe Machine: Full Metal Cover Or Semi Metal Cover
Chip Chain System: It Is Available To Install Chip Chain Conveyor. Control System Of Lathe Machine: FANUC, SIEMENS, MITSUBISH, OR GSK
Lathe Machine Color: Per Customer's Request Package Of Lathe Machine: Vaccum Bag And Wooden Box Package
High Light:

4 Vertical Turret Facing Lathe

,

Large Span Turret Facing Lathe

,

500mm Workpiece Turret Facing Lathe

Large span 4 vertical automatic turret facing lathe



Face lathe

Face milling and center hole drilling machines are mainly used for face milling and center drilling. The machine tool adopts CNC numerical control, and all its movement and auxiliary functions are controlled by CNC program. The machine tool adopts a good internal and external full protection design, and the fixture body adopts a double V hydraulic separate automatic customer, which has the characteristics of high processing accuracy and high output efficiency.





Specifications of Facing lathe machine, flange turning lathe, cnc lathe, cnc lathe machine
Name Unit CK64125 CK64160 CK61200 CK64250 CK64300
Swing Diameter over Machine Bed mm φ1250mm φ1600mm φ2000mm φ2500mm φ3000
Chuck Diameter mm φ1000mm φ1250mm φ1600mm φ2000mm φ2500mm
Chuck-jaw seat length mm Embedded Embedded 500mm 500mm 500mm
Work-piece Length mm 500mm 750mm 750mm 1000mm 1000mm
Work-piece Weight T 2T 2T 3T 3T 5T
Spindle Diameter mm φ190mm φ200mm φ220mm φ220mm φ260mm
Spindle Speed r/min 10-200 r/min 4-160 r/min 4-160 r/min 3-106 r/min 3-106 r/min
X Axis Stroke mm 625mm 800mm` 1000mm 1250mm 1500mm
Z Axis Stroke mm 500mm 750mm 1000mm 1000mm 1000mm
X Axis Rapid Feed Speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min
Z Axis Rapid Feed Speed mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min 2000mm/min
Cutting Tool Carriage Size   240*240 280*280 300*300 300*300 300*300
Cutting Tool Shank Size mm 32*32mm 40*40mm 40*40mm 40*40mm 40*40mm
Feed Control   Servo Motor Servo Motor Servo Motor Servo Motor Servo Motor
Motor Parameters
Main Motor Power KW 15KW 18.5KW 18.5KW 22KW 37KW
Feed Motor of Z Axis KW 2.3KW 2.3KW 2.3KW 2.3KW 2.3KW
Feed Motor of X Axis KW 2.3KW 5.5KW 5.5KW 5.5KW 5.5KW
Lubrication Motor Power KW 0.37KW 0.37KW 0.37KW 0.55KW 0.55KW
Machine Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Flatness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Dimensions mm 3180*1910*1870 3940*1980*1900 4190*2670*2450 4250*2770*2800 4400*3300*3300
Machine Weight T 6T 9.5T 11T 12.5T 15T



Structure

A. Large span rigid guide rail
B. The spindle system conforms to international standards, with higher rigidity and stronger cutting ability. The spindle can be equipped with multiple functions
C. Servo spindle motor to ensure higher chip performance
D. Integral double split-centering fixture has good rigidity and is easy to adjust
E. Automatic chip removal, can locate chip removal position according to customer requirements
F. Horizontal sliding mechanism, processing large products, stable machine feed, faster response speed
G.HT250 overall rigid high bed
The body has undergone mechanical research and design to ensure that there is no strong vibration during cutting. The feeding height is 850mm, which is more convenient and easy to operate according to the human body structure design.
