Multi Functional Steel Lathe Machine High Efficiency Threading Pipe

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

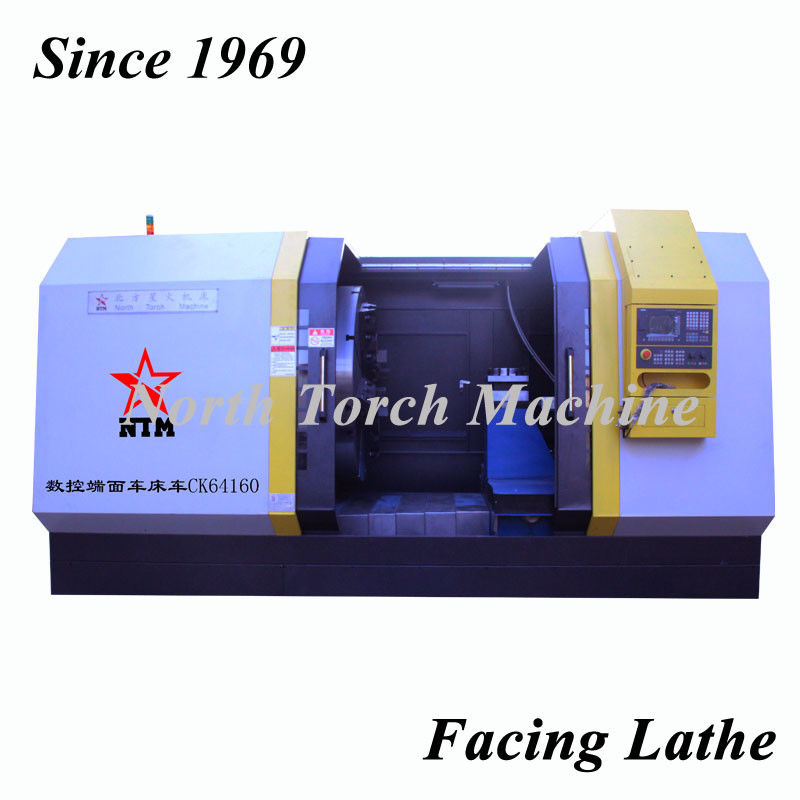

Multi Functional Steel Lathe Machine High Efficiency Threading Pipe

Multi Functional Steel Lathe Machine High Efficiency Threading Pipe
Multi Functional Steel Lathe Machine High Efficiency Threading Pipe Multi Functional Steel Lathe Machine High Efficiency Threading Pipe Multi Functional Steel Lathe Machine High Efficiency Threading Pipe Multi Functional Steel Lathe Machine High Efficiency Threading Pipe

Large Image :  Multi Functional Steel Lathe Machine High Efficiency Threading Pipe

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customer's logo is also ok
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CK61160

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 2 months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description
CNC Lathe Usage: Automotive Wheel Turning Lathe Machine Max.Diameter Of Cylinder,shaft, Pipe: 1600 Mm
Max.Length Of Cylinder, Shaft: 500 Mm CNC Control System: SIEMENS, FANUC, GSK,Manual Type According To Customer Request
Certificate: BV, CE, SGS, ISO9001 Optional Machine Accessories: Chuck, Roll Rest, Etc
High Light:

cnc turning machine

,

lathe machine tool

Multi-functional CNC Machine Tool for facing in flange,threading pipe



1. Application of Horizontal CNC Lathe: This kind of CNC Lathe is Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.



We also have professional machining equipments such as, Gantry CNC Milling Machine, Gantry CNC Grinding Machine, Large CNC Boring Machine, etc. We have 12 meter long gantry grinding machine to finish precision grinding for machine guide rails. All of our gears are ground by professional equipment to ensure its high precision.



The lathe is also can be installed the tailstock to machining long shaft, cylinder, propeller, breaking hammer etc. Without tailstock, it is a kind of facing in lathe and can be used for turning flange, tyre mold, Aluminum Mold, steel part, and other disc part.



2. ADVANTAGES & FEATURES OF Our CNC LATHE:



1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.



2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.



3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine



4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.



5. High torque capacity of headstock of lathe machine



6. Zero backlash with ball screw.



7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system



8. Tailstock is electrical control with pressure display, which obtained our national patent.



Exported Countries :



Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc



3. Technical Parameters of CNC Lathe



CK61 series horizontal CNC Lathe
Name Unit CK6180 CK61125 CK61160 CK61200 CK61250 CK61300
Guide rail Type   Rectangle 2 Guide Rails Rectangle 2 Guide Rails Rectangle 2 Guide Rails Rectangle 2 Guide Rails Rectangle 2 Guide Rails Rectangle 2 Guide Rails
Swing diameter over machine bed mm φ800mm φ1250mm φ1600mm φ2000mm φ2500 φ3000
Swing diameter over cutting tool carriage mm φ400mm φ800mm φ1250mm φ1600mm φ2000mm φ2500
Guide rail width of machine bed mm 600mm 755mm 1000mm 1000mm 1100mm 1100mm
4 jaws single action Chuck diameter mm φ400mm φ800mm φ1250mm φ1600mm φ2000mm φ2500mm
Max.Length of work-piece mm 1000mm 2000mm 3000mm 4000mm 5000mm 6000mm
Work-piece Weight T 2T 5T 10T 12T 15T 15T
Spindle Diameter mm φ190mm φ190mm φ220mm φ220mm φ260mm φ260mm
Spindle Speed r/min 10-300r/min 5-134r/min 5-106r/min 5-106r/min 3-87r/min 3-87r/min
X Axis Stroke mm 400mm 600mm` 800mm 1000mm 1250mm 1500mm
Z Axis Stroke mm 1000mm 2000mm 3000mm 4000mm 5000mm 6000mm
X axis rapid speed mm/min 2500mm/min 2500mm/min 2500mm/min 2000mm/min 2000mm/min 2000mm/min
Z axis rapid speed mm/min 3000mm/min 3000mm/min 3000mm/min 2500mm/min 2500mm/min 2500mm/min
F Cutting tool blade size mm 40*40mm 40*40mm 40*40mm 40*40mm 40*40mm 40*40mm
Tailstock spinlde diameter mm φ150mm φ180mm φ240mm φ240mm φ280mm φ280mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Tailstock moving method   Electrical Electrical Electrical Electrical Electrical Electrical
Tailstock Tip   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7
Total Power KW 11KW 15KW 18.5KW 22KW 30KW 37KW
Lubrication Motor Power KW 0.37KW 0.55KW 0.56KW 0.57KW 0.58KW 0.59KW
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughtness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2





Remarks: The above technical parameters of Horizontal Lathe Machine is the standard specifications, we are also specialized in manufacutring customized lathe.









Multi Functional Steel Lathe Machine High Efficiency Threading Pipe 0

Multi Functional Steel Lathe Machine High Efficiency Threading Pipe 1



For more details, please feel free to contact us.



Thank you for attention.



Tag: CNC Lathe, Horizontal Lathe, Lathe Machine with high speed, PLC Control Lathe Machine

Contact Details
Qingdao North Torch Machine Tool Co.,Ltd

Contact Person: Anna Sun

Tel: 18266613366

Send your inquiry directly to us (0 / 3000)
