| Machining Process Of Lathe Machine: | End Facing, Surface, Tapper, Ex-circle, Threading, Inner Hole Etc | Accessories: | Metal Cover For Lathe Machine, Chuck, Anchor Bolt, Sizing Blocks,Spanner,Wrench,etc |
|---|---|---|---|
| Machine Tool: | 4 Positions Automatic Electrical Rotation Cutting Tool | Chip Removal System: | Chain Type Automatic Chip Removal System |
| Voltage: | Customer's Requirement,220V/380V,400V,440V | Lathe After-sale Service: | Engineers Are Available For Machine Installation And Commissioning |
| Application Of Facing Lathe Machine: | Machining Flange, Tyre Mold, Propeller, Bearing, | Lathe Machine Condition: | New Manufacture With High Quality |
| High Light: | gear head lathe machine,precision metal lathe |
||
Features of Facing In Lathe, Flange Lathe, Horizontal Lathe:

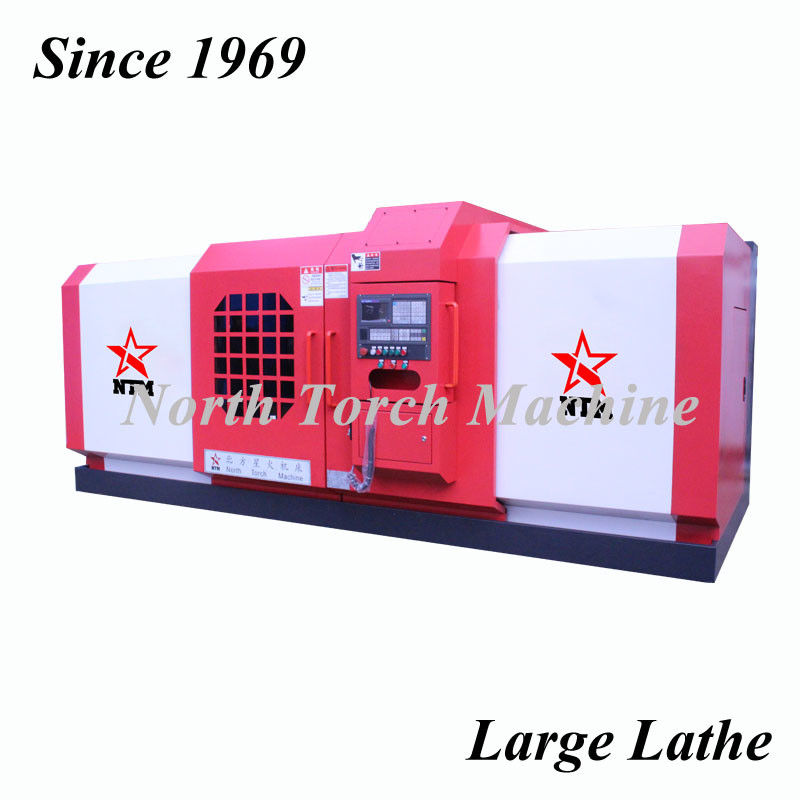

This Facing In Lathe Machine is a special-purpose heavy-duty CNC face lathe and it is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter for all kinds of workpieces .
This lathe is reasonable in structure and strong in rigidity with large power and good stability, and what's more, it's beautiful in appearance and easy for operation, really the ideal product for processing all kinds of large-diameter workpieces.
The feed system of Facing In Lathe Machine adopts frequency control motor to realize the stepless speed regulation. This makes the choice of feed rate more convenient.
Our Special Advantages:
1. More than 50 years' experience in machinery industry since 1960s.
2. Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
3. Base adopts triangular guide design
4. Reasonable structure
5. High performance with low cost
6. We have our own foundry which can control the quality strictly.
7. All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.
8. Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
9. We are specialized in designing and manufacturing customized lathes for over 50 years , if you have special request and demands, please feel free to contact us.
2. Standard Technical Parametes of Facing In Lathe, Flange Lathe, Facing In Lathe
| Specifications of Facing in Lathe | ||||||
| Name | Unit | CK64125 | CK64160 | CK61200 | CK64250 | CK64300 |
| Swing Diameter over Machine Bed | mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm | φ3000 |
| Chuck Diameter | mm | φ1000mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
| Chuck-jaw seat length | mm | Embedded | Embedded | 500mm | 500mm | 500mm |
| Work-piece Length | mm | 500mm | 750mm | 750mm | 1000mm | 1000mm |
| Work-piece Weight | T | 2T | 2T | 3T | 3T | 5T |
| Spindle Diameter | mm | φ190mm | φ200mm | φ220mm | φ220mm | φ260mm |
| Spindle Speed | r/min | 10-200 r/min | 4-160 r/min | 4-160 r/min | 3-106 r/min | 3-106 r/min |
| X Axis Stroke | mm | 625mm | 800mm` | 1000mm | 1250mm | 1500mm |
| Z Axis Stroke | mm | 500mm | 750mm | 1000mm | 1000mm | 1000mm |
| X Axis Rapid Feed Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2000mm/min | 2000mm/min |
| Z Axis Rapid Feed Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
| Cutting Tool Carriage Size | 240*240 | 280*280 | 300*300 | 300*300 | 300*300 | |
| Cutting Tool Shank Size | mm | 32*32mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
| Feed Control | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | |
| Motor Parameters | ||||||
| Main Motor Power | KW | 15KW | 18.5KW | 18.5KW | 22KW | 37KW |
| Feed Motor of Z Axis | KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
| Feed Motor of X Axis | KW | 2.3KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
| Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW |
| Machine Accuracy | ||||||
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Flatness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
| Machine Dimensions | mm | 3180*1910*1870 | 3940*1980*1900 | 4190*2670*2450 | 4250*2770*2800 | 4400*3300*3300 |
| Machine Weight | T | 6T | 9.5T | 11T | 12.5T | 15T |
Castings and Machine Componenets Features:
1.Geared Head Engine Lathe is floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.
2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.
3. All the gears are precision grounded, with long life and low noise;
4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.
