Large Gantry Milling Machine High Precision Energy Saving Long Lifespan

Large Gantry Milling Machine High Precision Energy Saving Long Lifespan
Large Gantry Milling Machine High Precision Energy Saving Long Lifespan Large Gantry Milling Machine High Precision Energy Saving Long Lifespan Large Gantry Milling Machine High Precision Energy Saving Long Lifespan Large Gantry Milling Machine High Precision Energy Saving Long Lifespan

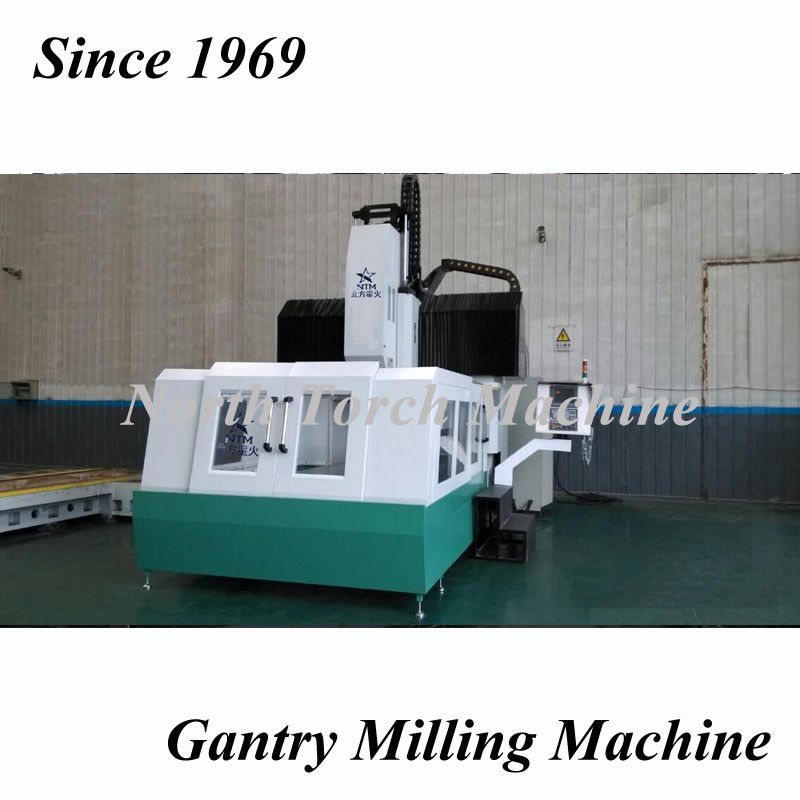

Large Image :  Large Gantry Milling Machine High Precision Energy Saving Long Lifespan

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized Horizontal Lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CKM2516

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 3 months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description
Application Of Heavy Duty Lathe: Turning Drilling Cylinders, Railway Crankshaft Max.Diameter Of Cylinder,shaft, Pipe: 630 Mm 1000 Mm 1250 Mm 1600 Mm 2000 Mm
Max.Length Of Cylinder, Shaft: 2000 Mm 3000 Mm 4000 Mm 5000 Mm 8000 Mm CNC Control System: SIEMENS, FANUC, GSK, According To Customer Request
Voltage: 380V, 440V, 415V, 220V, Etc Weight Of Machining Part: 6T 15T 32T 45T 55T
After-sale Service Of Roll Lathe: Engineers Are Available For Oversea Machine Installation And Commissioning Horizontal Lathe Accessories: Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc
High Light:

cnc gantry milling machine

,

large gantry milling machines

China Professional Gantry Milling Machine for Milling Boring Drilling Crankshaft



1. Application of Gantry Milling Machine:



CNC Gantry or Bridge Milling Machine with movable work-table adopts Japanese advanced technology of dynamic stiffness, which has high vibration absorption, more high accuracy, high precision, high rigidity and stability even under a large torque and heavy cutting.



The machine has multi-functions of milling, boring, drilling inner holes, ex-circle, flat surface, bench, cone, spherical surface, grooves etc with a high speed and accuracy. This gantry milling machine is widely used for energy, aerospace, automotive, printing, fabrication, transportation, military project, rubber, molding, food industry and so on.



2. OUR ADVANTAGES & FEATURES about CNC Gantry Milling Machine:



1. More than 50 years experience in designing and manufacturing customized Horizontal Lathe, Roll turning lathe, lathe machine, horizontal CNC lathe, vertical lathe , Conventional Lathe and other machine tools.



2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.



3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine



4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.



5. High torque capacity of headstock of lathe machine



6. Zero backlash with ball screw.



7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system



8. Tailstock is electrical control with pressure display, which obtained our national patent.



Exported Countries :



Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc



Machine Overall layout



The overall layout is the movable gantry work table of symmetric structure,including working table base,working table ,left and right column, beam, slide carriage, Hydraulic system etc.



It’s a is a frame structure made from the left and right column, the beam and the working table is equipped with high rigidity iron with adopting resin - coated sand shell casting process, after casting process, do artificial aging annealing treatment for the part, after rough machining, do the second vibrating aging treatment.



The casting has high quality without crack,stomata,shrinkage and White tissue.After two artificial aging treatment, the casting has a stable structure and ensure the chemical composition,rigidity and stability of the material.Product quality certificate provide the analysis of chemical composition of cast iron,heat treatment report and heat treatment temperature time curve.



The machine has three CNC feed axis and three axis linkage achieving high speed and high precision mold processing and also large torque and heavy cutting machine processing.



The three axis of the machine tool has strict hard and soft limit double insurance,safety protection to To ensure the safe and reliable operation of the machine tool.


The machine has a metal telescopic protective cover and the guide of the cross beam is used in the protection of the accordion.

The machine has automatic chip removal function
The machine has automatic temperature control function
All parts of the machine tools are compulsory and automatic lubrication



Working table base and working table



The working table is used to reinforce the square box To increase the density of the tendon of the junction of the base and column.Greatly improve the rigidity of the machine tool and machine tool's ability to resist distortion.


We Install vertical high density reinforcing bar below the track directly undertake the weight of the workpiece and table to avoid the entire machine in a suspended state and improve the bearing capacity and deformation capacity of the machine.


The working table uses high density square box and reinforced bar made from special selection of high strength cast iron. We increase the height of the work table to avoid the deformation of the beam .



Spindle Motor



The spindle motor is a broadband speed AC servo motor, which realizes high torque output with low speed and high speed processing to finish a good roughness, so that it is particularly suitable for heavy cutting machine and mold parts machining.



The spindle uses Japanese famous brand bearing—p4 grade precision. It ensures a high accuracy, durability and stability.



Hydraulic System



This machine adopts independent hydraulic station, the main pump, valve, hydraulic parts are all made of imported products with high stability, low failure rate, low noise. The hydraulic circuit is simple and unblocked, which is equipped with automatic temperature control device to ensure the working stability and extend the using life.



Control System



The Gantry CNC milling lathe machine can be installed SIMENS 828D CNC Control system or Mitsubish or FANUC control. It has high speed, high precision and high stability features and widely used for machining complex surface of work-pieces. The machine has X,Y,Z three feed axis, which can realize three axis association.



3. Technical Parameters of CNC Gantry Milling Machine



Specifications
Worktable Size mm 2500×1300
Max. Work-piece Weight T 5
Max. Width of Bridge/Gantry mm 1600
Max. Stroke of X-Axis mm 2500
Max. Stroke of Y-Axis mm 1600
Max. Stroke of Z-Axis mm 700
Distance from the spindle end to the work-table surface mm 100(Minimum)-800(Maximum)
Power of Spindle Motor Kw 15/18.5
Spindle speed rpm 5-4000 rpm
The spindle Type   CAT50
Repeated positioning accuracy of X,Y,Z /per 300 mm mm ±0.005/±0.005/±0.005
X,Y,Z Positioning Accuracy /300mm mm ±0.008/±0.008/±0.008
Max. Cutting speed X/Y/Z m/min 8/8/8
Max. Rapid moving speed X/Y/Z m/min 10/10/10
Volume of The cooling water tank   400L
Cooling pump flow   60L/min
Lubrication device   Lubricate automatically per required demands
Pneumatic system   P=0.5~0.8Mpa
The hydraulic system   P=7Mpa,Q=40L/min
Machine tool control system   SIMENS 828 D
Display   LCD 8.4″LCD


Remarks: The above technical parameters of roll turning lathe is the standard specifications, we are also specialized in manufacutring customized milling lathe machine.



4. After-sale Service



1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.

2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.

3. The quality warranty of Heavy Duty Horizontal Lathe, Lathe Machine, CNC Lathe is 12 months.



For more details, please feel free to contact us.



Thank you for attention.
