| Name: | Facing Lathe Machine, CNC Lathe, Conventional Lathe | Swing Diameter Over Machine Bed: | 800-5000 Mm |
|---|---|---|---|
| Accessories: | Metal Cover For Lathe Machine, Chuck, Anchor Bolt, Sizing Blocks,Spanner,Wrench,etc | Machine Tool: | 4 Positions Automatic Electrical Rotation Cutting Tool |
| Certificate: | CE, SGS, BV, EAC | Voltage: | Customer's Requirement,220V/380V,400V,440V |
| High Light: | gear head lathe machine,precision metal lathe |
||
Our Special Features and Advantages:
1. More than 50 years' experience in machinery industry since 1960s.
2. Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
3. Base adopts triangular guide design
4. Reasonable structure
5. High performance with low cost
6. We have our own foundry which can control the quality strictly.
7. All castings are do surface heat treatment such as QUENCHING AND TEMPERING to guarantee the high rigidity and stability of lathe machine.
Application of Facing In Lathe, Flange Lathe, Horizontal Lathe:
The base guide of Facing lathe, Engine Lathe, Flange lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.

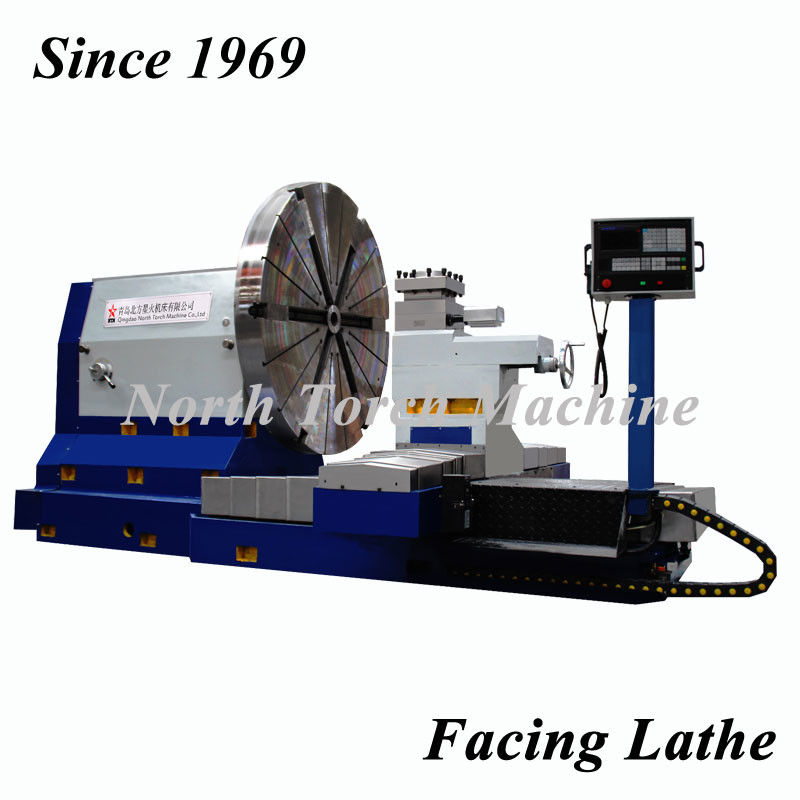

2. Standard Technical Parametes of Facing In Lathe, Flange Lathe, Facing In Lathe
| Specifications of Facing in Lathe | ||||||
| Name | Unit | CK64125 | CK64160 | CK61200 | CK64250 | CK64300 |
| Swing Diameter over Machine Bed | mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm | φ3000 |
| Chuck Diameter | mm | φ1000mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
| Chuck-jaw seat length | mm | Embedded | Embedded | 500mm | 500mm | 500mm |
| Work-piece Length | mm | 500mm | 750mm | 750mm | 1000mm | 1000mm |
| Work-piece Weight | T | 2T | 2T | 3T | 3T | 5T |
| Spindle Diameter | mm | φ190mm | φ200mm | φ220mm | φ220mm | φ260mm |
| Spindle Speed | r/min | 10-200 r/min | 4-160 r/min | 4-160 r/min | 3-106 r/min | 3-106 r/min |
| X Axis Stroke | mm | 625mm | 800mm` | 1000mm | 1250mm | 1500mm |
| Z Axis Stroke | mm | 500mm | 750mm | 1000mm | 1000mm | 1000mm |
| X Axis Rapid Feed Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2000mm/min | 2000mm/min |
| Z Axis Rapid Feed Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
| Cutting Tool Carriage Size | 240*240 | 280*280 | 300*300 | 300*300 | 300*300 | |
| Cutting Tool Shank Size | mm | 32*32mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
| Feed Control | Servo Motor | Servo Motor | Servo Motor | Servo Motor | Servo Motor | |
| Motor Parameters | ||||||
| Main Motor Power | KW | 15KW | 18.5KW | 18.5KW | 22KW | 37KW |
| Feed Motor of Z Axis | KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
| Feed Motor of X Axis | KW | 2.3KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
| Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW |
| Machine Accuracy | ||||||
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Flatness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
| Machine Dimensions | mm | 3180*1910*1870 | 3940*1980*1900 | 4190*2670*2450 | 4250*2770*2800 | 4400*3300*3300 |
| Machine Weight | T | 6T | 9.5T | 11T | 12.5T | 15T |
3. About Us
Qingdao North Torch Machine Tool Co.,Ltd was established in the 1969. It originally belonged to Liuting Airport Military Enterprise of North China Sea Fleet Aviation (Aviation Machinery Plant), and it is primarily responsible for aircraft maintenance, spare parts processing, middle and small sized machinery manufacturing, etc. In accordance with the document issued in 1999 by central military commission and the state council, the company was changed from military enterprise into a private company, and developed continuously.
Facing Lathe, Flange Lathe, Horizontal Lathe Machine,CNC Heavy-duty horizontal lathe, Roll Turning Lathe, Propeller turning lathe, Conventional Lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe , CNC Drilling Lathe Machine and CNC milling Lathe machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.
