Roll Turning CNC Lathe Machine Steel Groove Turning High Performance

China Qingdao North Torch Machine Tool Co.,Ltd certification
China Qingdao North Torch Machine Tool Co.,Ltd certification
I'm Online Chat Now

Roll Turning CNC Lathe Machine Steel Groove Turning High Performance

Roll Turning CNC Lathe Machine Steel Groove Turning High Performance
Roll Turning CNC Lathe Machine Steel Groove Turning High Performance Roll Turning CNC Lathe Machine Steel Groove Turning High Performance Roll Turning CNC Lathe Machine Steel Groove Turning High Performance Roll Turning CNC Lathe Machine Steel Groove Turning High Performance

Large Image :  Roll Turning CNC Lathe Machine Steel Groove Turning High Performance

Product Details:

Place of Origin: Qingdao,China
Brand Name: NTM or customized roll lathe is also available
Certification: CE, ISO9001, BV, SGS, EAC, etc
Model Number: CK8480 CK84100 CK84125 CK84160

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Box Package
Delivery Time: 4 months
Payment Terms: T/T
Supply Ability: 200 sets per one year
Detailed Product Description
Application Of Roll Turning Lathe: Professionally Used For Repairing Turning The Groove Of Steel Roll,roll Bar Max.Diameter Of Steel Roll: 630 Mm 1000 Mm 1250 Mm 1600 Mm 2000 Mm
Max.Length Of Steel Roll: 2000 Mm 3000 Mm 4000 Mm 5000 Mm 8000 Mm CNC Control System: SIEMENS, FANUC, GSK, According To Customer Request
Voltage: 380V, 440V, 415V, 220V, Etc Weight Of Roll Bar: 6T 15T 32T 45T 55T
After-sale Service Of Roll Lathe: Engineers Are Available For Oversea Machine Installation And Commissioning Lathe Machine Accessories: Roll Rest, Chuck, Metal Cover, Anchor Bolts, Cutting Tools, Etc
High Light:

cnc roll turning lathe machine

,

horizontal cnc lathe machine

CNC Roll Lathe For Turning Repairing the Groove of Steel Roll

Roll Turning CNC Lathe Machine Steel Groove Turning High Performance 0

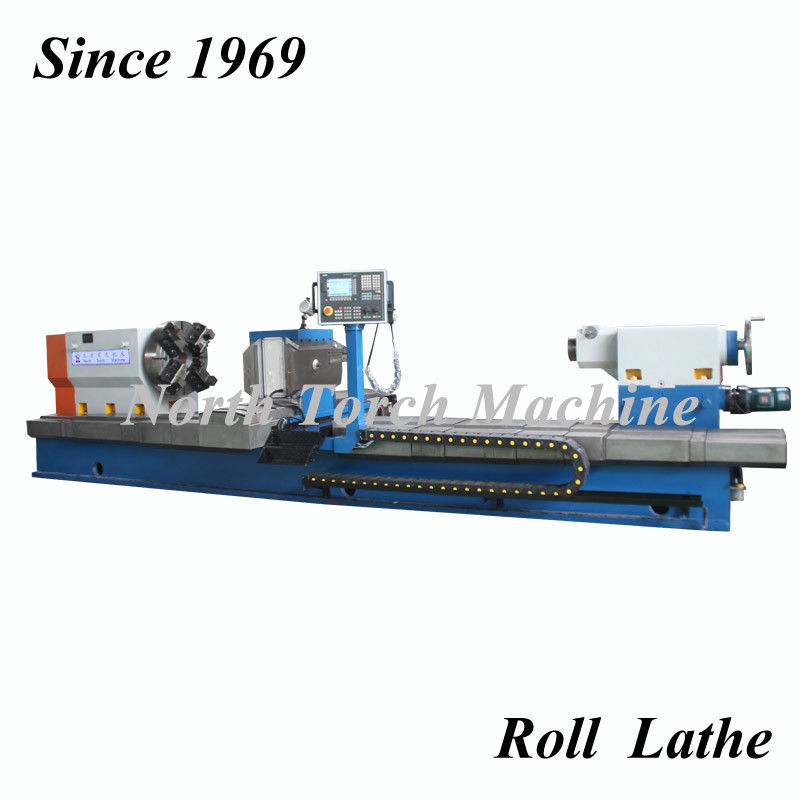

1. Application of CNC Roll Turning Lathe: Professionally used for modifying re-grooving the old steel rolls or machining the new steel roll , roll bar by steel plants. The roll turning cnc lathe can not only realize the machining process of turning, tapping, threading, groove, etc, but also the facing, ex-circle, surface, etc





2. OUR ADVANTAGES & FEATURES about CNC ROLL TURNING LATHE:



1. More than 50 years experience in designing and manufacturing customized roll turning lathe, lathe machine, horizontal lathe, vertical lathe and other machine tools.



2. We have our own FOUNDRY, which can control and guarantee the castings quality very well.



3. 4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine



4. We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.



5. High torque capacity of headstock of lathe machine



6. Zero backlash with ball screw.



7. Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system



8.Tailstock is electrical control with pressure display, which obtained our national patent.



Exported Countries :



Our products have been exported to Georgia, Russia, India, Iran, Panama,Colombia,Brazil, Indonesia, Australia, Mexico, America, France, Iran, Chile, Norway, Thailand, Pakistan, Argentina and etc. Due to the excellent and stable quality with bottom price and professional after-sale service make us separate from other competitors and win a good reputation from domestic and abroad customers.



With the concept of “diversity and pursuit of excellence”, we aim to offer superior products and service to our customers.



3. Technical Parameters of steel roll turning lathe





CK84 series--Roll Turning Lathe Machine
Name Unit CK8465 CK8480 CK84100 CK84125 CK84160 CK84200
Guide Rail Type   4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails 4 Guide rails
Max.Diameter of Work-piece mm φ650mm φ800mm φ1000mm φ1250mm φ1600mm φ2000 mm
Guide Rail Width of Machine Bed mm 1000mm 1100mm 1400mm 1600mm 1800mm 2000mm
Chuck Diameter mm φ1000mm φ1100mm φ1400mm φ1600mm φ1800mm φ2000mm
Chuck Jaw Length mm 250mm 250mm 320mm 320mm 320mm 320mm
Max.Length of Work-piece mm 4000mm 5000mm 8000mm 12000mm 150000mm 20000mm
Work-piece Weight T 10T 18T 25T 32T 40T 50T
Spindle Diameter mm φ190mm φ220mm φ260mm φ300mm φ300mm φ360mm
Spindle Speed r/min 5-260r/min 2-165r/min 2-130r/min 2-130r/min 2-80r/min 0.5-80r/min
Spindle Tips Size   Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 120 1:7 Metric 160 1:7 Metric 160 1:7
X Axis Stroke mm 50-325mm 50-400mm` 50-500mm 100-625mm 100-800mm 200-1000mm
Z Axis Stroke mm 1000-4000mm 1000-5000mm 2000-8000mm 2000-12000mm 3000-15000mm 3000-20000mm
X axis Rapid Speed mm/min 2000mm/min 2000mm/min 2000mm/min 2500mm/min 2500mm/min 2500mm/min
Z axis Rapid Speed mm/min 2500mm/min 2500mm/min 2500mm/min 2500mm/min 2500mm/min 3000mm/min
Tailstock spindle diameter mm φ240mm φ290mm φ290mm φ320mm φ320mm φ410mm
Tailstock sleeve stroke mm 300mm 300mm 300mm 300mm 300mm 300mm
Moving method of tailstock   Electrical control Electrical control Electrical control Electrical control Electrical control Electrical control
Max.cutting force of single tool KN 60KN 80KN 80KN 80KN 100KN 150KN
Max.Torque of Chuck KN·m 13KN·m 22KN·m 33KN·m 40KN·m 90KN·m 233KN·m
Total cutting force KN 45KN 60KN 70KN 110KN 160KN 210KN
Motor
Main Motor Power KW 22KW 37KW 45KW 55KW 75KW 128KW
Lubrication Motor Power KW 0.37KW 0.37KW 0.55KW 0.55KW 0.55KW 0.55KW
Accuracy
Cylindricity mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Platness mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm 0.03/300mm
Roughness Ra Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2 Ra3.2
Machine Size CM 600*200*140 750*220*165 8100*275*195 1000*310*215 1050*320*240 1250*360*265
Machine Weight T 20T 23T 26T 35T 46T 65T



Remarks: The above technical parameters of roll turning lathe is the standard specifications, we are also specialized in manufacutring customized lathe.





Roll Turning CNC Lathe Machine Steel Groove Turning High Performance 1









4. After-sale Service



1. Engineers are available for roll turning lathe machine installation , commissioning and training at the user factory.

2. Machine accessories like chuck jaws, gears, bearings, cutting tools etc can be provided immediately by Fedex, DHL, etc to prevent the production termination.

3. The quality warranty of roll turning lathe is 12 months.



We are China Professional Manufacture for Horizontal Lathe Machine, Heavy duty lathe, Roll turning Lathe, Pipe Threading Lathe, CNC Lathe, Conventional Lathe, Large CNC Lathe with drilling milling functions, CNC Grinding Machine and Special designed lathe, etc

For more details, please feel free to contact us.
